ARCUS
Introduction
With the model range schaerer® arcus, 2 model variants are available for all surgical applications and disciplines.
Ergonomics and functionality of the mobile operating table range schaerer® arcus are optimum prerequisites for an efficient and safe utilisation in all relevant working steps and sequences.
Operating convenience for the user and safety for the patient optimise the working economy and so contribute to a treatment gentle on the patient.
Mobile Operating table with heavyweight function
The new standard for mobile operating tables
DEVELOPED from practice
BROUGHT TO PERFECTION for the patients
EASY to handle
FLEXIBLE for the surgeon
SAFE for the user
Models
Arcus 501
The versatile basic model with one
electro-hydraulic powered tabletop flex point. Head and leg plates are manually adjustable.
Arcus 601
The convenient one with two electro-hydraulic powered tabletop flex points. Legplates in basic position is adjustable motor-driven
or manually.
Arcus 701
The basic model for orthopaedics and traumatology. Tabletop consisting of head and backplate and one electro-hydraulic powered table top flex point.
Characteristics
Maximum Capacity
Patient weight up to 500kg
Patient weight all positions, Dynamic Mode: 350kg
Maximum Accessibility
Eccentric column for 1250 mm X-ray window <500 kg
Highest freedom of movement, including C-arm access without any additional manipulation, even when using extension modules
Maximum Patient Comfort
Accurate and smooth motion with pads for decubitus prevention.
Maximum Flexibility
Mobile operating table for all surgical disciplines
Maximum Height Adjustment
Column range 595 mm - 1200 mm
Maximum Safety
Backup design for batteries, motor pump, and control
Maximum Stability
Self-compensating dynamic floor lock system
Maximum Quality
Swiss precision wherever you operate since 1892
Product Options
Basic Position
All models can be optionally equipped with the depicted head and leg plates.
92053 Legplates
2-part With side rail 25 x 10 mm.
92054 Legplates
2-part With side rail 30 x 10 mm.
Standard leg plates
consisting of 2 small and 2 large leg plate pads.
Tilting up and down with gas-lift spring assistance
Swiveling outwards 90º
92049 Leg plate
one-piece, rigid
With side rails 25 x 10 mm & with pad.
92062 Leg plate
one-piece, rigid
With side rails 30 x 10 mm & with pad.
92050 Leg plate
one-piece, tilting up and down
With side rails 25 x 10 mm & with pad.
92064 Leg plate
one-piece tilting up and down
With side rails 30 x 10 mm & With pad.
Continuous adjustments with gas-lift spring assistance.
Reverse Position
All models can be optionally equipped with the depicted head and leg plates.
92210 Head rest standard,
tilting up and down
With side rails 25 x 10 mm.
92310 Head rest standard,
tilting up and down
With side rails 30 x 10 mm.
Standard head rest
Length: 300 mm.
Continuous adjustment with gas-lift
spring assistance.
2211 Head rest double joint,
tilting up and down
With side rails 25 x 10 mm.
92311 Head rest double joint,
tilting up and down
With side rails 30 x 10 mm.
Standard head rest
Length: 300 mm.
Continuous adjustment
with gas-lift spring assistance.
92231 Intermediate plate, long
With side rails 25 x 10 mm.
92331 Intermediate plate, long
With side rails 30 x 10 mm.
Rigid version. With pad.
Length: 450 mm
92232 Intermediate plate, short
With side rails 25 x 10 mm.
92332 Intermediate plate, short
With side rails 30 x 10 mm.
Rigid version. With pad.
Length: 230 mm
Maximum open space for C-arm utilisation
in the basic position
Maximum open space for C-arm utilisation
in the reverse position
with carbon plate for 1550 mm X-ray window (1350 mm 3D)
Applications
Abdominal Intervention
Hand Surgery with Hand Surgery Plate
Gynaecology / Urology / Laparoscopy
Gynaecology / Urology / Laparoscopy
Neuro / Spine Surgery
Neuro / Spine Surgery
Neuro / Spine Surgery

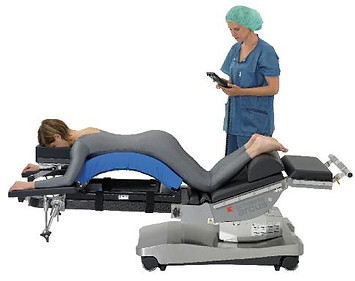

Spinal
Procedures
Shoulder Surgery
Shoulder Surgery
Shoulder Surgery
Orthopaedic and Traumatological Surgery: MIS-Extension
Orthopaedic-traumatologic support and positioning system with an extension device offering full freedom of movement for the lower extremity. It can be operated with one hand only. Specially developed for minimally invasive surgery and hip arthroscopy.
The schaerer® MIS-Extension can easily be attached to the operating tables schaerer® axis 500/700 or schaerer® arcus 501/701 by using the trolley. Additionally, the trolley assures the correct storage of the system and of the necessary accessories
Orthopaedic and Traumatological Surgery
Orthopaedic-traumatologic support and positioning system with an extension device offering full freedom of movement for the lower extremity. It can be operated with one hand only. Specially developed for minimally invasive surgery and hip arthroscopy.
Accessories for Orthopaedic and Traumatological Surgery
The clearly arranged accessories enable interventions for thigh, lower leg and intra-medullary nailing.
A special orthopaedic-traumatological operating table is not necessary. Attachable to the models schaerer® axis 500/700 and schaerer® arcus 501/701.
2
4
3
1
5
3
12
13
6
10
7
11
16
9
14
8
8
15
10
1.
2.
3.
4.
5.
6.
7.
90182 Traction bar for femur, metal (1 piece)
90183 Traction bar for femur, metal (pair)
90974 Traction bar for femur, carbon fibre
90978 Multiple fixing clamp for traction bar
90919 OTZ seat plate for axis 51 mm pad
(in reverse position backplate)
90244 OTZ seat plate for arcus, 26 mm pad
OTZ leg plates (pair)
90410 with side rails 25 x 10 mm
90409 with side rails 30 x 10 mm
90330 Leg holder (Goepel) with pad & strap
90506 Radial settings clamp
Accessories trolley OTZ
90429 with side rails 25 x 10 mm
90430 with side rails 30 x 10 mm
90193 Telescopic supports
90191 Traction shoes (pair)
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
90187 Counter-traction holder with pad
90184 Traction units (order 2 pieces)
90199 OTZ leg holder with pad
Side Rail Extension
81696 for side rails 25 x 10 mm
81965 for side rails 30 x 10 mm
90198 Horseshoe holder (Kirshner)
Holder for Goepel Leg holder
90190 with side rails 25 x 10 mm
90189 with side rails 30 x 10 mm
90195 Perineal rod with pad
90194 Holder/lateral
90186 Traction bar for the lower leg with pad
90939 axis table extension pad 69 mm
91289 Packaging for OTZ accessories trolley
90196 Adapter for traction shoes MIS
Electrical Unit
Moves the operation table even with heavy weight patients comfortably without physical effort. Two speeds forward and one backward, give optimum drive for long and short distances or narrow areas.
FAST SPEED
Pressing two buttons at one time initiates the fast speed.
SLOW SPEED
Pressing one direction button initiates the
slow speed for manoeuvres in narrow areas
and keeping one hand free, or carrying additional items (i.e. infusion stands on wheels).
Digital Integration - OR1
All our schaerer® arcus operating tables can be equipped with a digital integration feature. A central command unit (KARL STORZ OR1TM) allows control of the table together with other items such as lamps, cameras, etc. in a realistic user interface.
Model Information
Product Dimensions
Technical Data
Electrical mains connection: 100-120 / 200-240 V AC, 50-60 HZ
Control voltage: 24 V DC
Battery charging time: 6 - 8 hours
Battery Capacity: approx. 20 operations, 4 maintenance-free batteries with charge indication on the display of the hand control (and low-battery acoustic signal)
Side rail dimensions: 25 x 10 mm or 30 x 10 mm
Weight: 300 kg / 660 lbs
ELECTRO-HYDRAULIC
Height adjustment: up / down
Trendelenburg: Normal / Reverse
Lateral tilt: left / right
Seat plate: up / down
Leg plate: up / down
Head plate: up / down
Flex/Reflex
Zero position
MANUAL
Head plate: up / down
Leg plate: up / down
Legplates: swiveling out 90°
